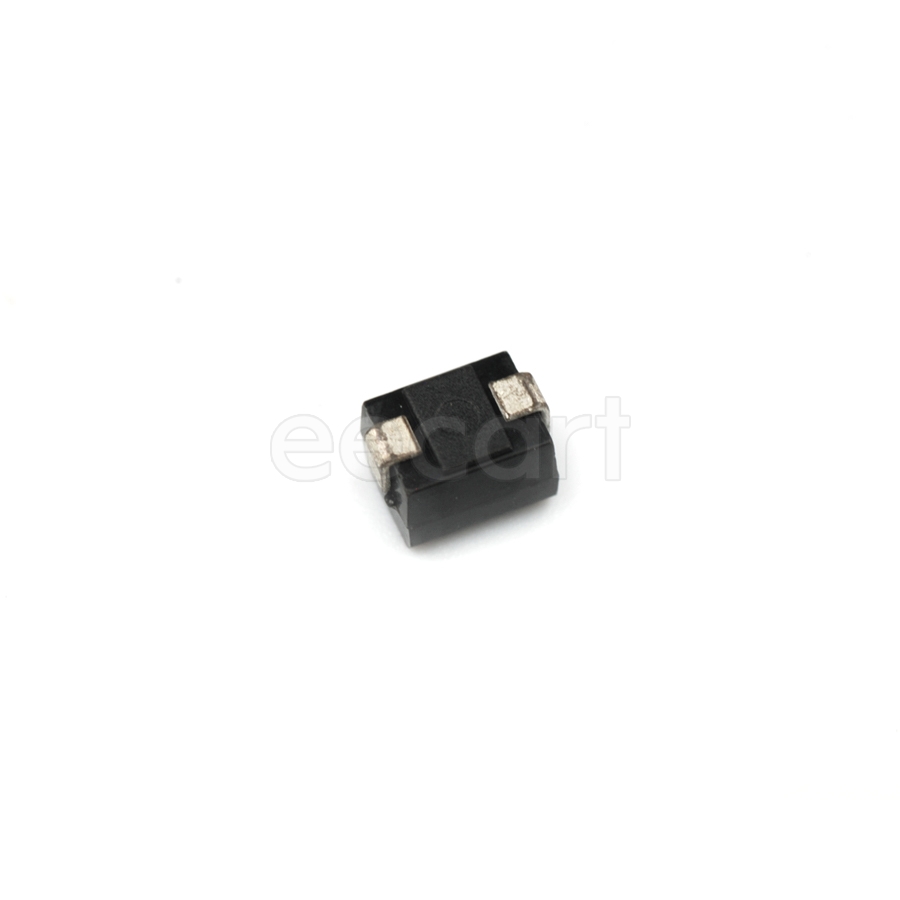

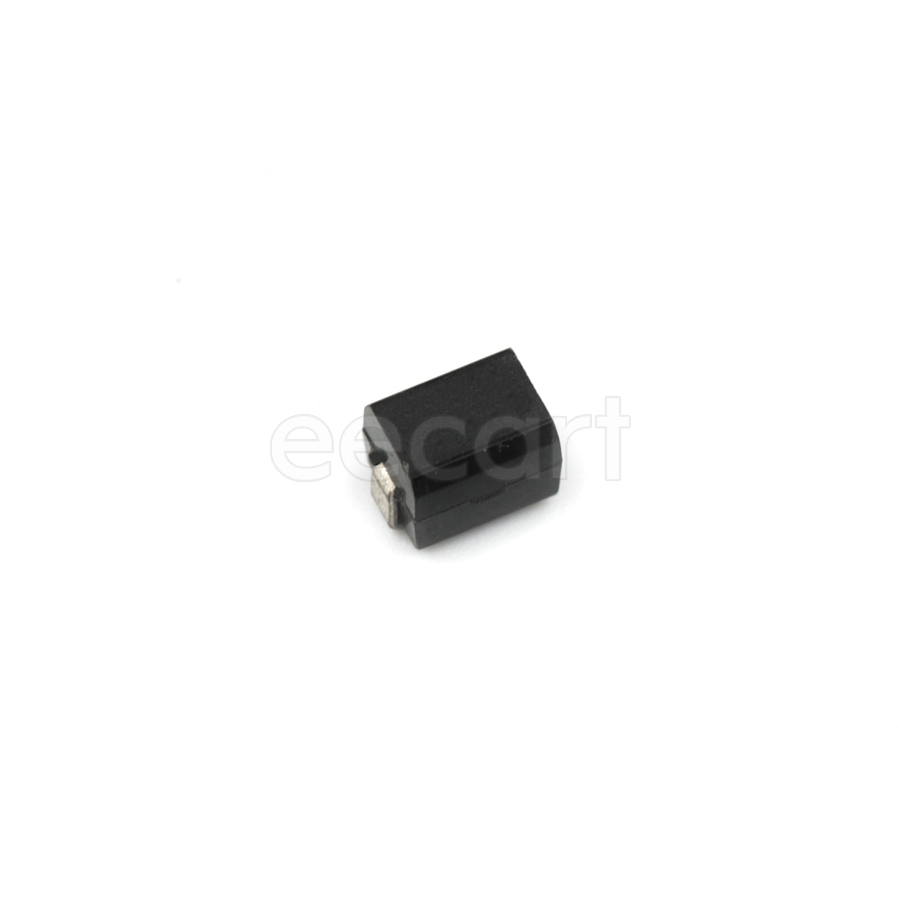

7447669182
Manufacturer:
Wurth Electronics
Mfr.Part #:
7447669182
Datasheet:
Description:
Fixed Inductors 1812(4532 Metric) SMD/SMT 82 µH 10 % 300 mA 3.18 Ω
| Parameter | Value |
|---|---|
| Tolerance | 10 % |
| Height - Seated (Max) | 3.41 mm |
| Length | 4.4958 mm |
| Width | 3.2004 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Reel |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Self Resonant Frequency | 11 MHz |
| Current Rating | 300 mA |
| DC Resistance (DCR) | 3.18 Ω |
| Test Frequency | 975 kHz |
| Shielding | Unshielded |
| Inductance | 82 µH |
| Core Material | Ferrite |
| inductance tolerance | 10 % |
| Max DC Current | 300 mA |
Stock: 680
Distributors
pcbx
pcbxUnit Price$0.25648
Ext.Price$0.25648
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.25648 | $0.25648 |
| 10 | $0.24516 | $2.45160 |
| 25 | $0.23434 | $5.85850 |
| 50 | $0.22399 | $11.19950 |
| 100 | $0.19396 | $19.39600 |
| 300 | $0.16524 | $49.57200 |
| 500 | $0.14078 | $70.39000 |
